名稱：導軌型電源 DRL系列
型號：DRL-24V75W1AZ DRL-24V120W1AA DRL-24V120W1AS DRL-24V240W1AA
品牌：臺達
介紹：導軌型電源DRL系列提供12V/24V額定輸出電壓，廣泛適用于攝氏-20度至75度的環境溫度，保持時間20ms以上，為專為惡劣工業環境打造。
| 圖片 | 型號名稱 |
輸出電壓 |
額定輸出電流 |
輸出功率 |
輸入電壓范圍 | 尺寸 (L x W x D) | 亮點及特色 |
 |

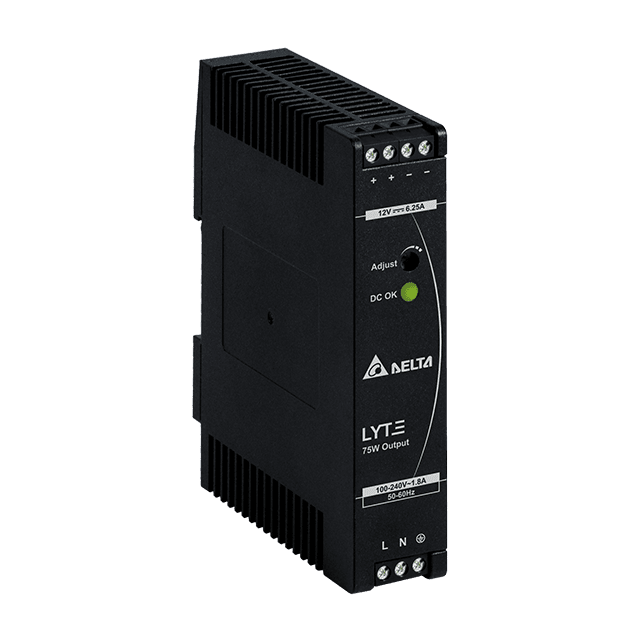

導軌型電源DRL-12V75W1AZ | 12V | 6.25A | 75W |
85-264Vac |
123.6 x 27 x 102 mm
4.87" x 1.06" x 4.02"
|
1:Universal AC input voltage range
2:Built-in constant current circuit for reactive loads
3:Up to 87.5%efficiency
4:Full power from-10°C to+50°C 230Vac with-30°C Cold Start
5:Compliance to SEMI F47 200Vac
|
|
|
導軌型電源DRL-24V75W1AZ | 24V | 3.125A | 75W | 85-264Vac |
123.6 x 27 x 102 mm
4.87" x 1.06" x 4.02"
|
1:Universal AC input voltage range
2:Built-in constant current circuit for reactive loads
3:Up to 89%efficiency
4:Full power from-10°C to+50°C 230Vac with-30°C Cold Start
5:Compliance to SEMI F47 200Vac
6:NEC Class 2/Limited Power Source(LPS)certified
|
 |
導軌型電源DRL-24V120W1AS | 24V | 5A | 120W |
85-264Vac |
123.6 x 40 x 117.6 mm
4.87" x 1.57" x 4.63"
|
1:全球通用AC輸入電壓范圍
2:內置恒電流電路用于無功負荷
3:效率可達88.0%
4:5000米或16400英尺海拔高度230Vac下-10°C至+50°C全功率運行
5:可選購內置DC OK繼電器干接點
6:符合SEMI F47標準 200Vac
7:電路板配備涂布三防漆以抵抗常見粉塵及化學污染物
|
 |

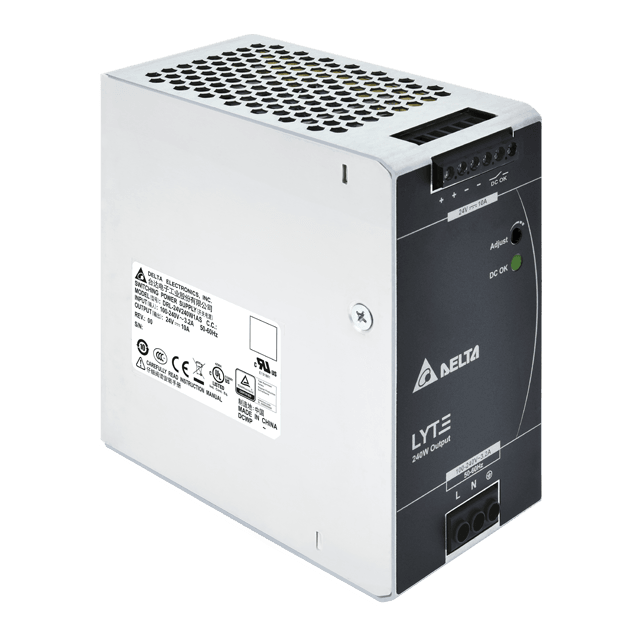

導軌型電源DRL-24V240W1AS | 24V | 10A | 240W |
120-375Vdc |
123.6 x 60 x 117.6 mm
4.87" x 2.36" x 4.63"
|
1:全球通用AC輸入電壓范圍
2:內置恒電流電路用于無功負荷
3:效率可達88.0%
4:5000米或16400英尺海拔高度230Vac下-10°C至+50°C全功率運行
5:可選購內置DC OK繼電器干接點
6:符合SEMI F47標準 200Vac
7:電路板配備涂布三防漆以抵抗常見粉塵及化學污染物
|
 |

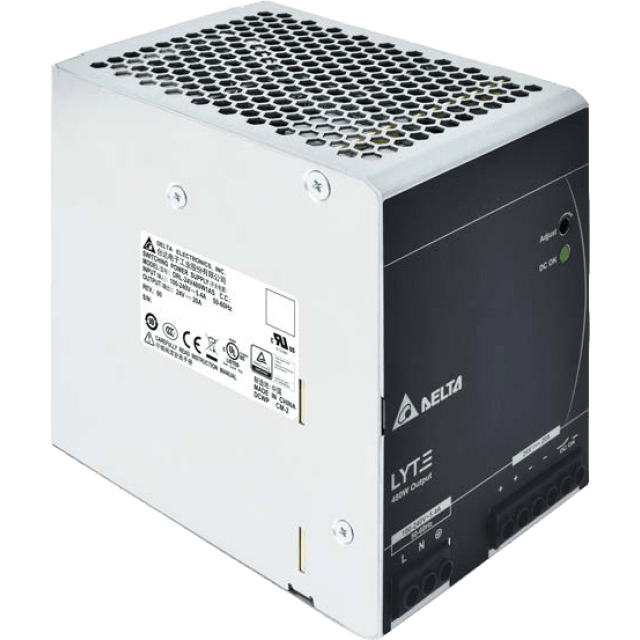

導軌型電源DRL-24V480W1AS | 24V | 20A | 480W |
85-264Vac |
123.6 x 85.5 x 128.5 mm
4.87" x 3.37" x 5.06"
|
1:全球通用AC輸入電壓范圍
2:內置恒電流電路用于無功負荷
3:效率可達88.0%
4:5000米或16400英尺海拔高度230Vac下-20°C至+50°C全功率運行
5:可選購內置DC OK繼電器干接點
6:符合SEMI F47標準 200Vac
7:電路板配備涂布三防漆以抵抗常見粉塵及化學污染物
|
|
|
導軌型電源DRL-48V120W1AS | 48V | 2.5A | 120W |
120-375Vdc |
123.6 x 40 x 117.6 mm
4.87" x 1.57" x 4.63"
|
1:Universal AC input voltage
2:Built-in constant current circuit for reactive loads
3:Up to 88.0%efficiency
4:Full power from-10°C to+50°C operation at 230Vac 5000 meters or 16400 feet altitude
5:Built-in DC OK relay contact option available
6:Compliance to SEMI F47 200Vac
7:Conformal coating on PCBAs to protect against common dust and chemical pollutants
|
|
|
導軌型電源DRL-48V75W1AZ | 48V | 1.57A | 75.36W |
85-264Vac |
123.6 x 27 x 102 mm
4.87" x 1.06" x 4.02"
|
1:Universal AC input voltage range
2:Built-in constant current circuit for reactive loads
3:Up to 90%efficiency
4:Full power from-10°C to+50°C 230Vac with-30°C Cold Start
5:Compliance to SEMI F47 200Vac
6:NEC Class 2/Limited Power Source(LPS)certified
|
